HVOF flame spray equipment

Introduction:

The principle of SX-5000 HVOF equipment is:

the mixture gas of oxygen and fuel gas is sent to the burning area of spray gun outlet under high pressure. Then the burning gas is accelerated to form a supersonic flame with the help of external compressed air. The spraypowder is sent into burning flame and make a functional coating.

The compositon:

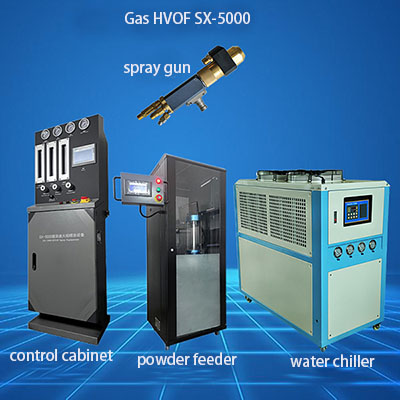

SX-5000 consists of spray gun, powder feeding machine, control system, heat-exchanger system and pipeline system. It’s a compact equipment with the feature of easy-operating, stable working performance, low fuel

consumption and high-quality coating.

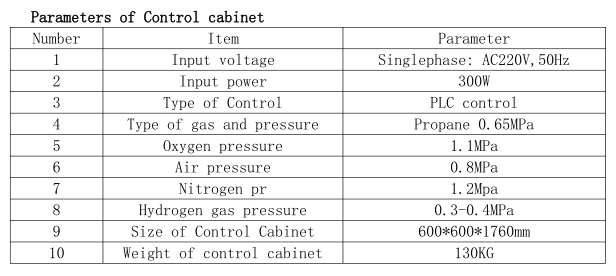

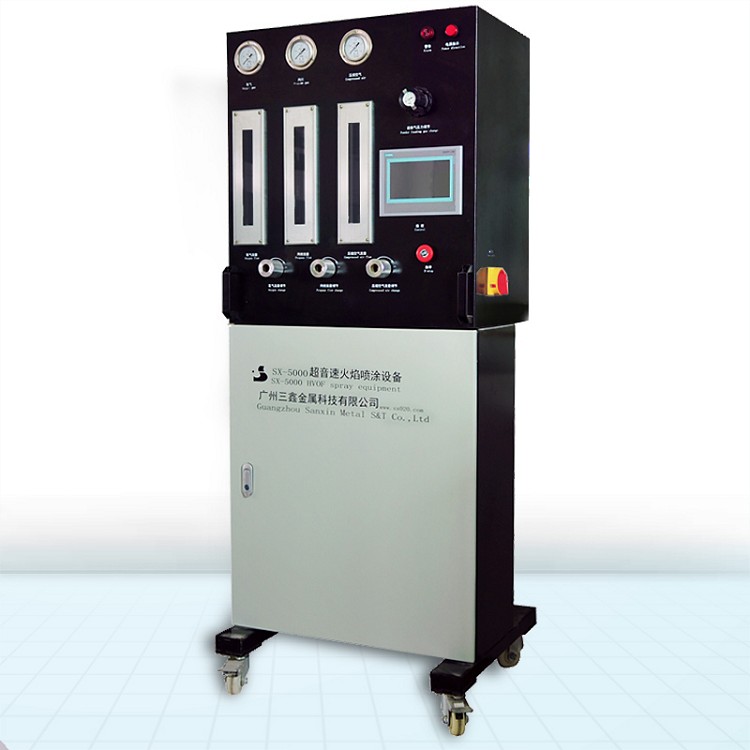

1,Control system

SX-5000 HVOF spray system is in advanced level,has superior performance and is easy to operate in comparasion to the same products in the world. The spraying process is in automation, and monitoring system in real-time which can respond immediately when system has failure.

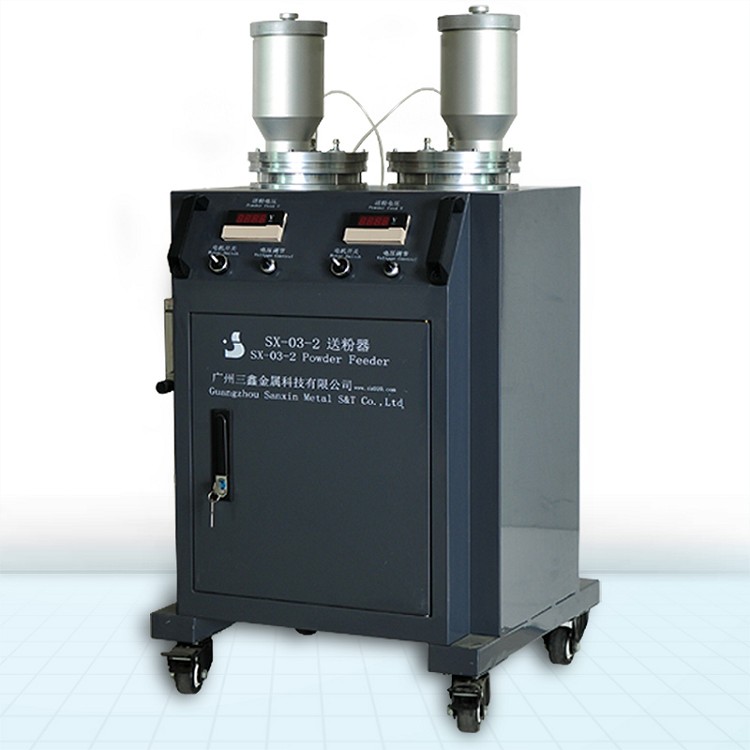

2,Powder feeder

The SX-5000 powder feeding machine is used to store spray powder and send them to burning flames according to technological requirements. The feeding gas is nitrogen, which pulverizes the powder and sends the pulverized particles to spray gun. You can regulate the feeding velocity by the localizer on the regulating control panel.

parameter of powder feeder

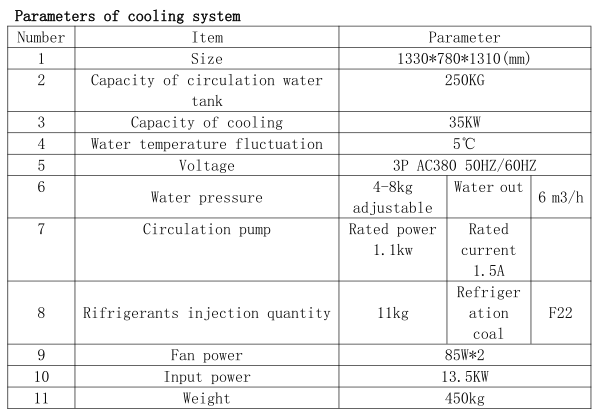

3,Cooling system

Double compressor equipment reduces its volume and savse your space. Mainly used for nozzle, seals to cooling.The purpose is to make nozzle, sealing ring prolong use life

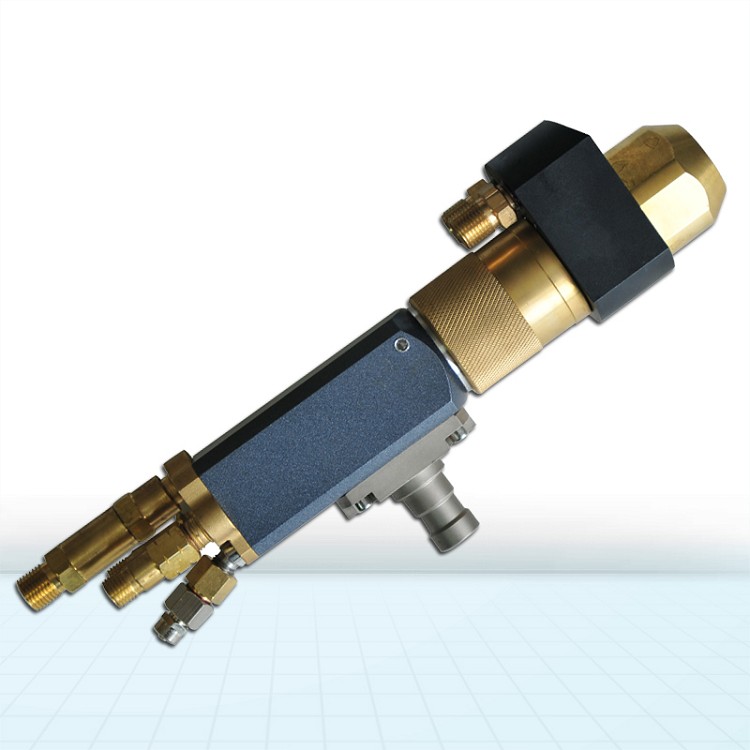

4,Spray gun

Spray gun with manual and machine fixed way of operation. Gas needed: oxygen and propane (C3H8),

weight: 3kg.

velocity of spray particles:≥450m/s. It can work for a long time stably.

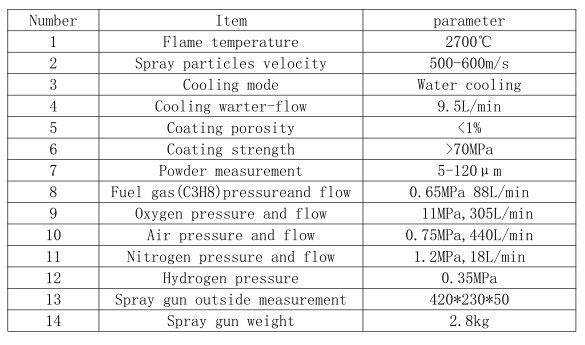

Parameters of spray gun
